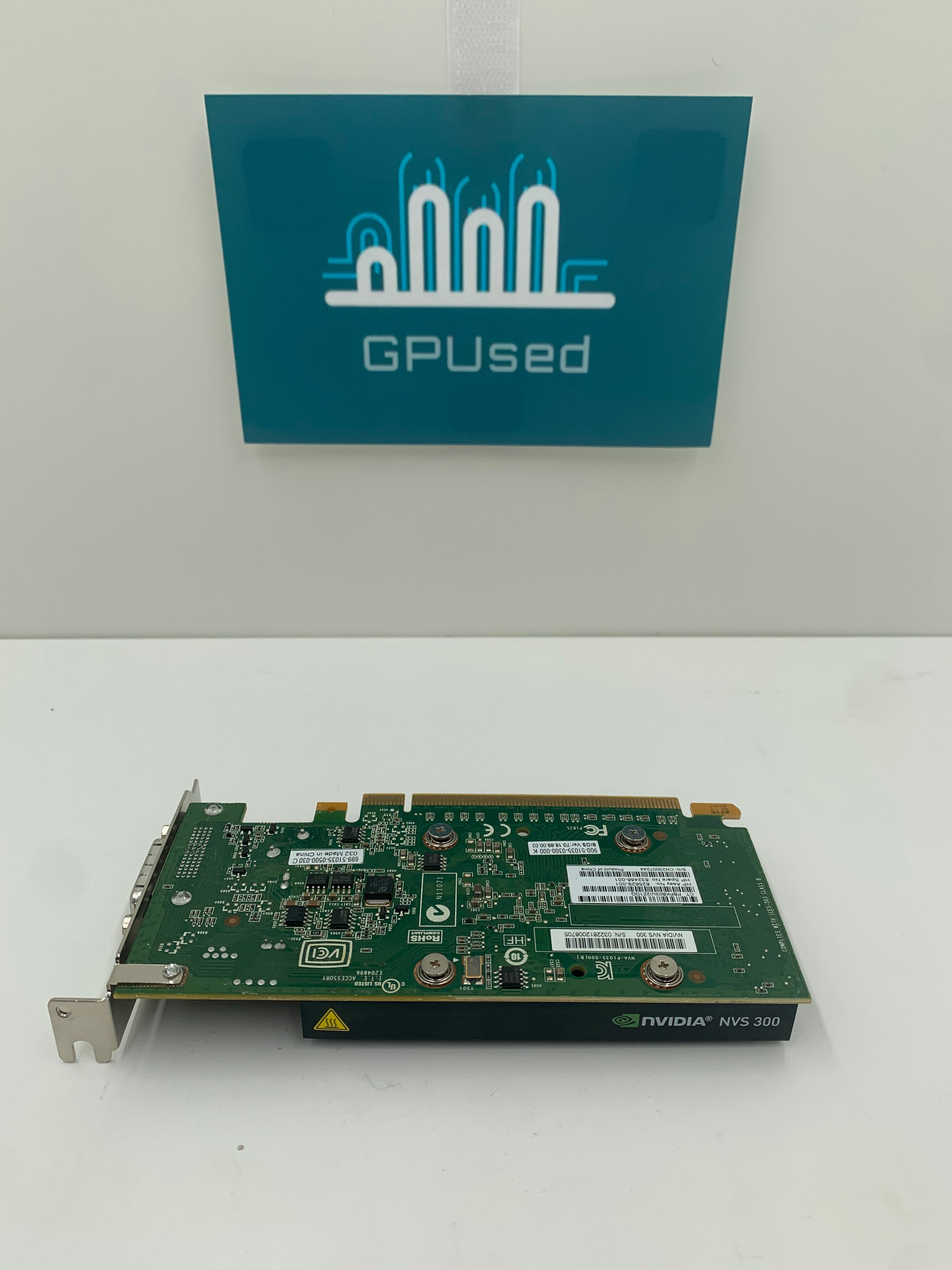

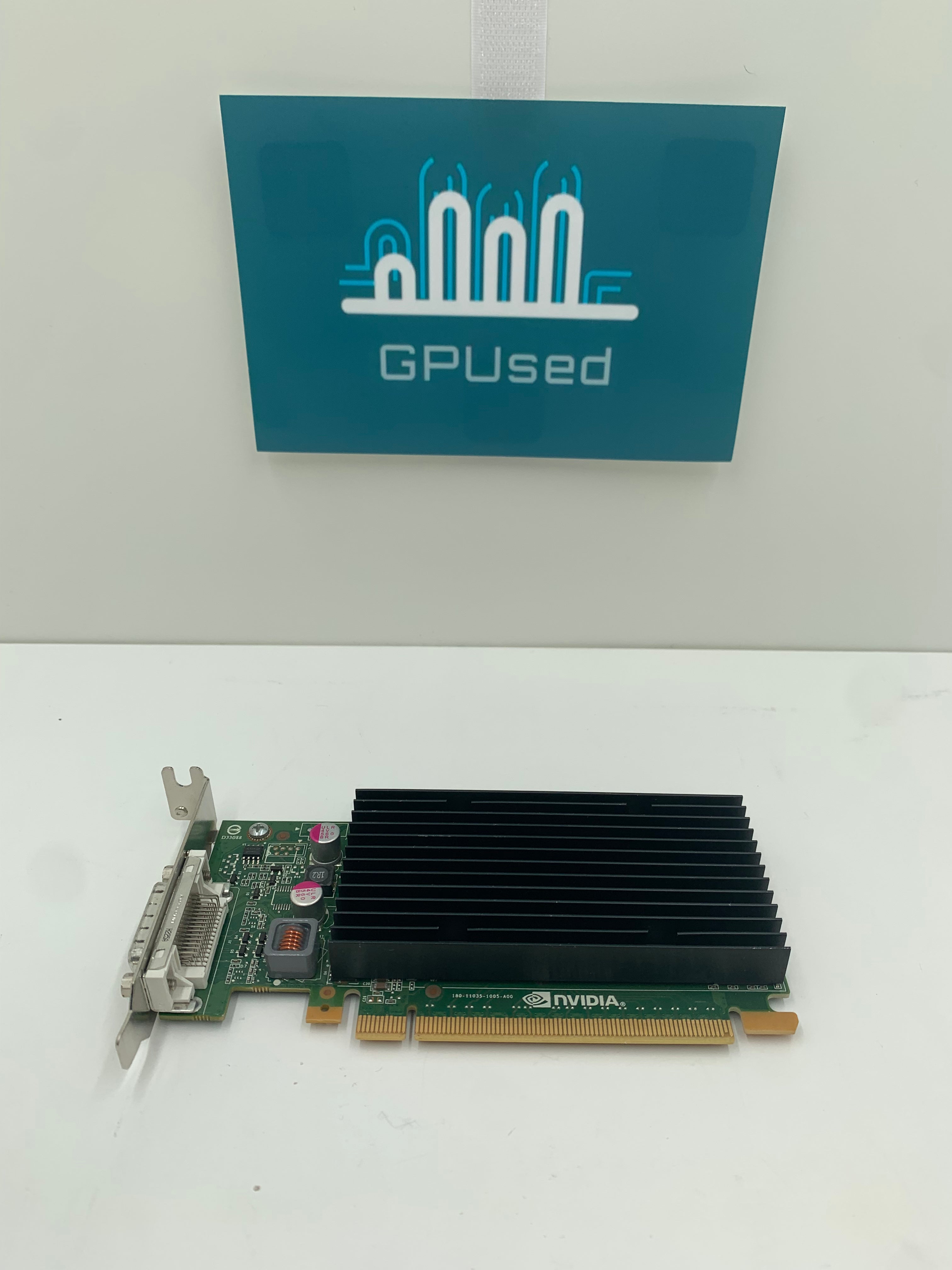

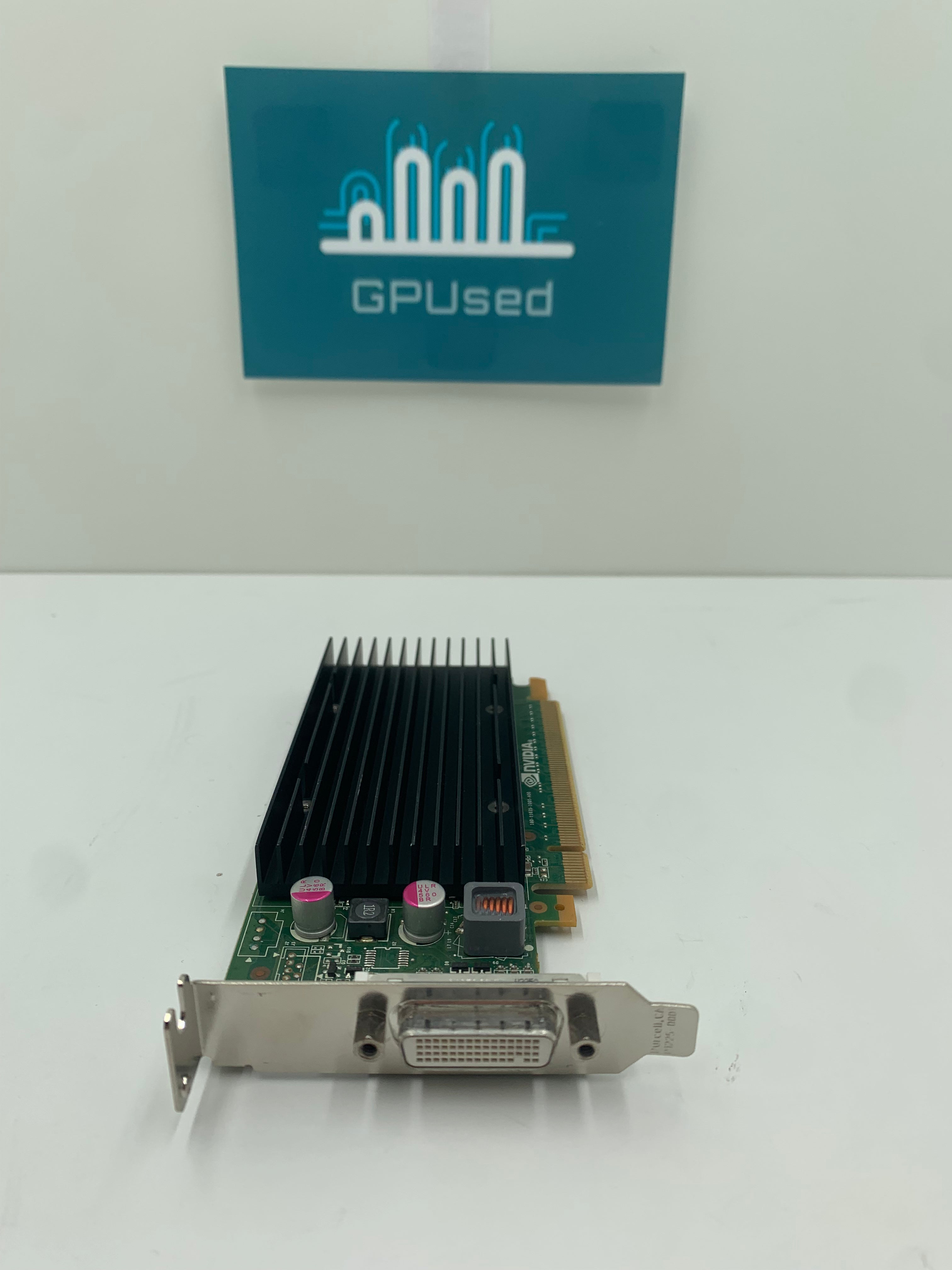

Nvidia Quadro NVS 300 - A
Nvidia Quadro NVS 300 - A
Graphics Processor
Graphics Card
- Release Date
- Jan 8th, 2011
- Generation
- NVS
- Production
- End-of-life
- Launch Price
- 109 USD
- Bus Interface
- PCIe 2.0 x16
- Reviews
- 26 in our database
Relative Performance
Clock Speeds
- GPU Clock
- 520 MHz
- Shader Clock
- 1230 MHz
- Memory Clock
- 790 MHz
1580 Mbps effective
Memory
- Memory Size
- 512 MB
- Memory Type
- DDR3
- Memory Bus
- 64 bit
- Bandwidth
- 12.64 GB/s
Render Config
- Shading Units
- 16
- TMUs
- 8
- ROPs
- 4
- SM Count
- 2
- L2 Cache
- 32 KB
Theoretical Performance
- Pixel Rate
- 2.080 GPixel/s
- Texture Rate
- 4.160 GTexel/s
- FP32 (float)
- 39.36 GFLOPS
Board Design
- Slot Width
- Single-slot
- Length
- 145 mm
5.7 inches
- TDP
- 18 W
- Suggested PSU
- 200 W
- Outputs
- 1x DMS-59
- Power Connectors
- None
- Board Number
- P1035
Graphics Features
- DirectX
- 11.1 (10_1)
- OpenGL
- 3.3
- OpenCL
- 1.1
- Vulkan
- N/A
- CUDA
- 1.2
- Shader Model
- 4.1
GT218S GPU Notes
| PureVideo HD: VP4 VDPAU: Feature Set C |
This card has passed several tests. These tests include - A 1 hour run on Furmark (for temperature readings and to ensure stability), one run on each of Unigene’s Heaven and Superposition benchmarks (for performance figures in relation to brand new models) and we only buy cards in once they’ve passed all 3 tests and remained below 75°C, even under the extremely high loads of a 1 hour Furmark test. Finally, we perform a visual check to ensure it’s in good enough aesthetic condition before we buy the product in. This insures we never have stock we’re not happy with, so you never have to worry when buying from us!
All our cards are in good working condition as explained above. However, if you receive your order and it unfortunately doesn’t work, don’t panic, we have a 30 day return window, with money back guarantee. All so you can enjoy the bargain without being worried about any issues.
Here's the GPUsed product grading system (currently only in place for GPUs)
A+ - New or Like new
A - Excellent / Very good for a used item (our most common grade)
B - Working (may have some cosmetic issues but won't affect performance)
C - Non working (we don't currently sell non working hardware)
Feel free to check out our reviews on Google and Trustpilot for added piece of mind :
GPUsed - 4.9* Reviews on Trustpilot
If you’re looking to sell a graphics card to us.
