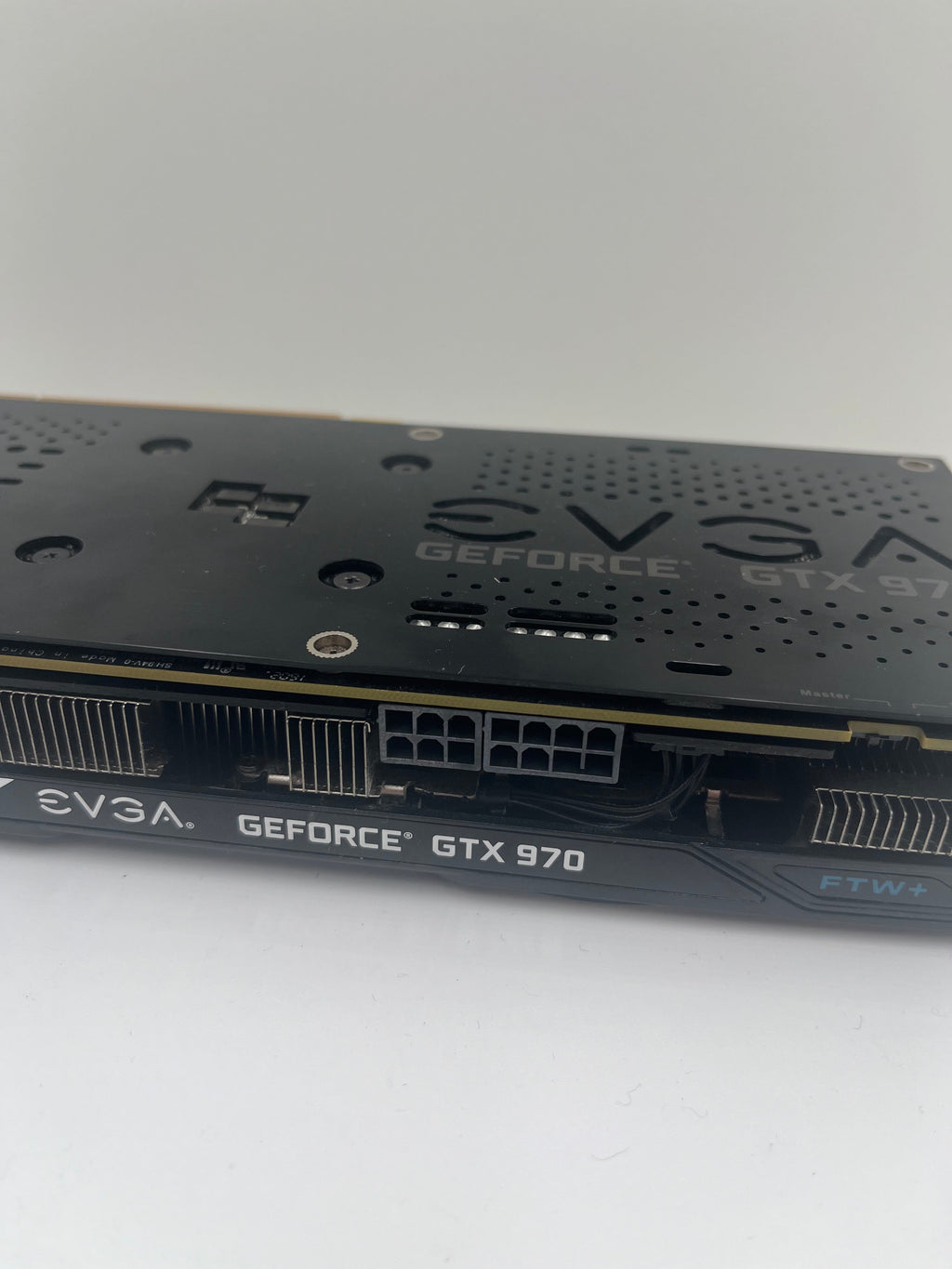

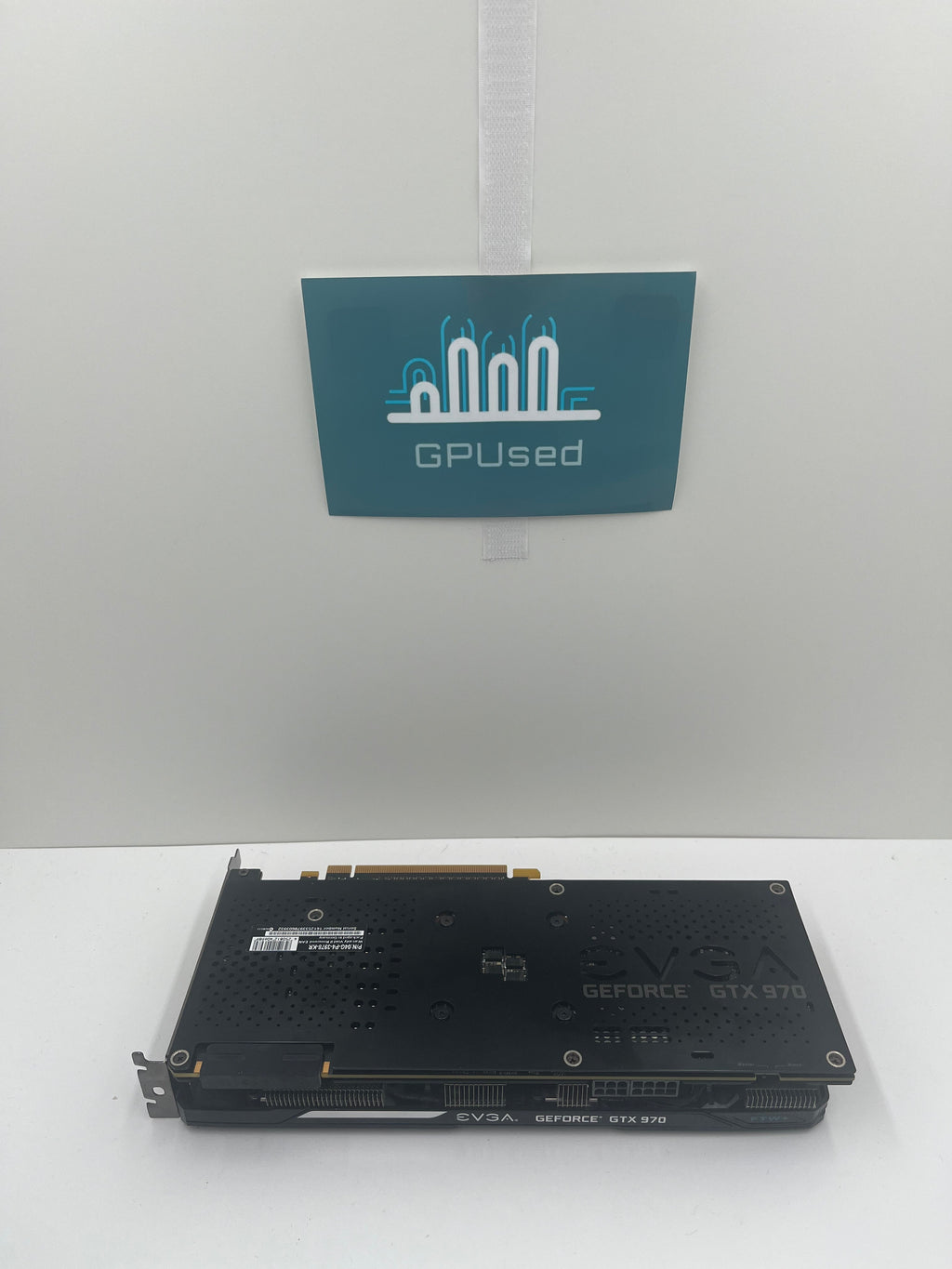

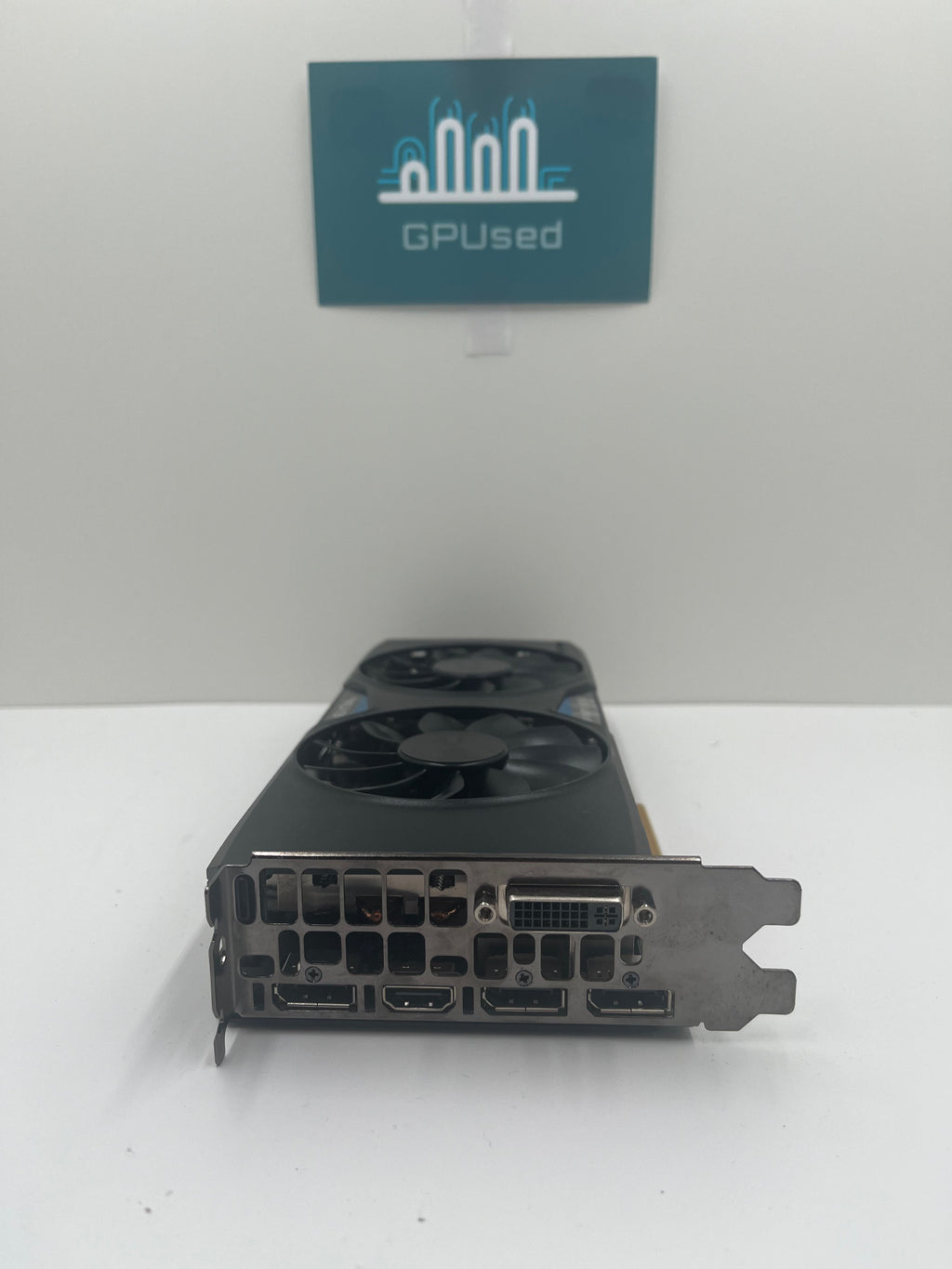

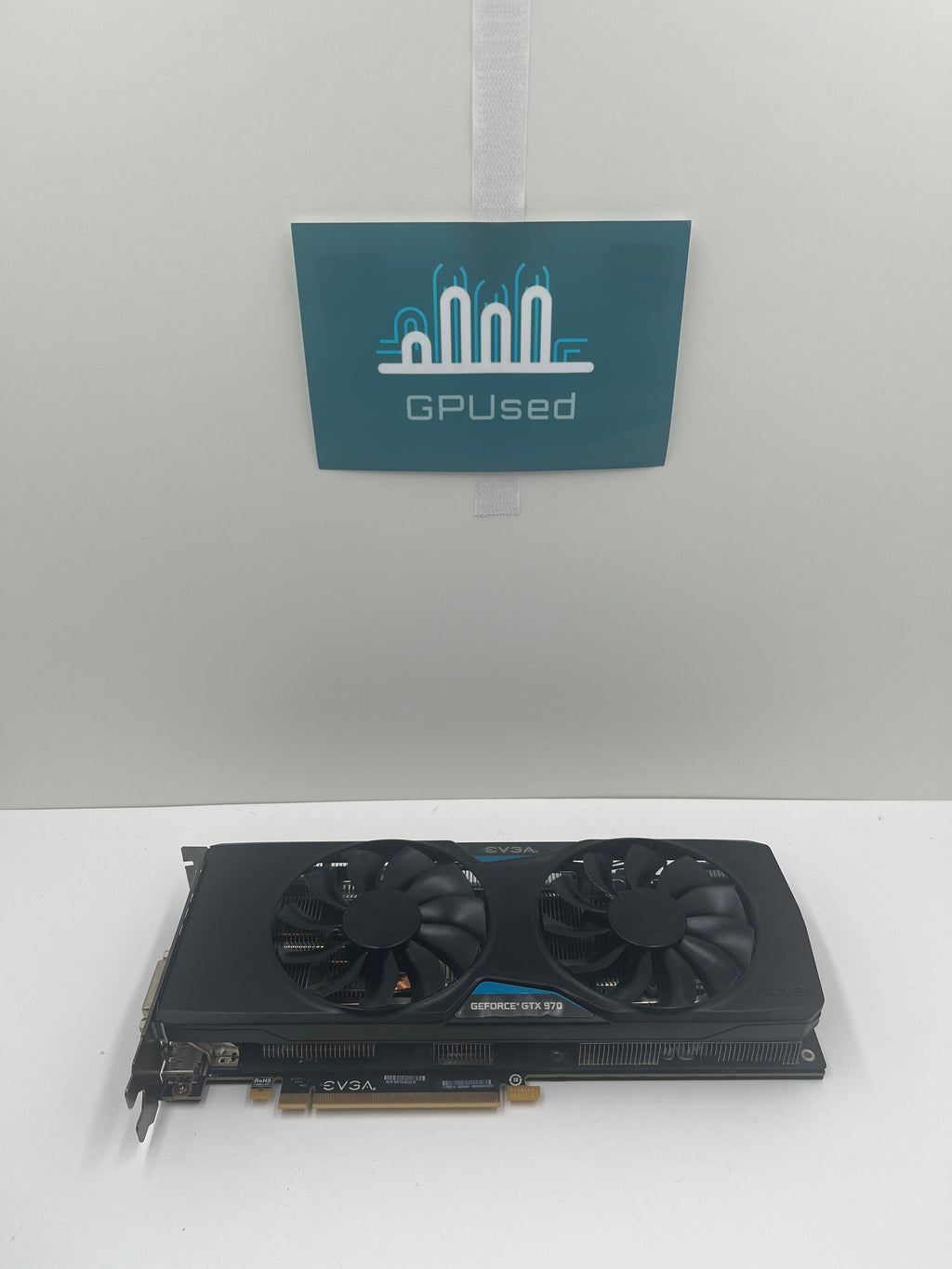

EVGA Nvidia GeForce GTX 970 SC Gaming 4GB GDDR5 - A
EVGA Nvidia GeForce GTX 970 SC Gaming 4GB GDDR5 - A
Product Description -
Summary - Great condition, without the original box. Specifications below -
Graphics Processor
- GPU Name
- GM204
- GPU Variant
- GM204-200-A1
- Architecture
- Maxwell 2.0
- Foundry
- TSMC
- Process Size
- 28 nm
- Transistors
- 5,200 million
- Density
- 13.1M / mm²
- Die Size
- 398 mm²
- Chip Package
- BGA-1745
Graphics Card
- Release Date
- Sep 19th, 2014
- Generation
- GeForce 900
- Predecessor
- GeForce 700
- Successor
- GeForce 10
- Production
- End-of-life
- Bus Interface
- PCIe 3.0 x16
Clock Speeds
- Base Clock
-
1050 MHz
1114 MHz (+6%)
- Boost Clock
-
1178 MHz
1253 MHz (+6%)
- Memory Clock
- 1753 MHz
7 Gbps effective
Memory
- Memory Size
- 4 GB
- Memory Type
- GDDR5
- Memory Bus
- 256 bit
- Bandwidth
- 224.4 GB/s
Render Config
- Shading Units
- 1664
- TMUs
- 104
- ROPs
- 56
- SMM Count
- 13
- L1 Cache
- 48 KB (per SMM)
- L2 Cache
- 2 MB
Theoretical Performance
- Pixel Rate
-
65.97 GPixel/s
70.17 GPixel/s
- Texture Rate
-
122.5 GTexel/s
130.3 GTexel/s
- FP32 (float)
-
3.920 TFLOPS
4.170 TFLOPS
- FP64 (double)
-
122.5 GFLOPS
130.3 GFLOPS (1:32)
Board Design
- Slot Width
- Dual-slot
- Length
-
267 mm
269 mm10.5 inches
10.6 inches
- TDP
- 148 W
- Suggested PSU
- 300 W
- Outputs
-
1x DVI
1x HDMI 2.0
3x DisplayPort 1.2
2x DVI
1x HDMI 2.0
1x DisplayPort 1.2
- Power Connectors
-
2x 6-pin
1x 6-pin + 1x 8-pin
- Board Number
- PG401
Graphics Features
- DirectX
- 12 (12_1)
- OpenGL
- 4.6
- OpenCL
- 3.0
- Vulkan
- 1.3
- CUDA
- 5.2
- Shader Model
- 6.7 (6.4)
Card Notes
| 3584 MB + 512 MB 224 Bit + 32 Bit |
GM204 GPU Notes
| NVENC: 5th Gen NVDEC: 1st Gen PureVideo HD: VP6 VDPAU: Feature Set E |
This card has passed several tests. These tests include - A 1 hour run on Furmark (for temperature readings and to ensure stability), one run on each of Unigene’s Heaven and Superposition benchmarks (for performance figures in relation to brand new models) and we only buy cards in once they’ve passed all 3 tests and remained below 75°C, even under the extremely high loads of a 1 hour Furmark test. Finally, we perform a visual check to ensure it’s in good enough aesthetic condition before we buy the product in. This insures we never have stock we’re not happy with, so you never have to worry when buying from us!
All our cards are in good working condition as explained above. However, if you receive your order and it unfortunately doesn’t work, don’t panic, we have a 30 day return window, with money back guarantee. All so you can enjoy the bargain without being worried about any issues.
Here's the GPUsed product grading system (currently only in place for GPUs)
A+ - New or Like new
A - Excellent / Very good for a used item (our most common grade)
B - Working (may have some cosmetic issues but won't affect performance)
C - Non working (we don't currently sell non working hardware)
Feel free to check out our reviews on Google and Trustpilot for added piece of mind :
